Su series electromagnetic water meter is a built-in battery driven electromagnetic water meter. It is developed and produced by Aichi company of Japan with the world's first low-power electromagnetic metering technology. Over 40 years, it has been a global application of more than one million sets, and it is one of the most famous electromagnetic water meter brands in the world. It has the characteristics of low initiating flow, high measuring accuracy, wide range and long service life. In 2003, it entered the Chinese market, and has been widely used by large domestic water enterprises such as Dalian, Shanghai, Nanjing, Tianjin, etc. for more than 15 years, it has almost no failure, and has gained excellent reputation.

Detailed Introduction

Product application


It is suitable for long-term measurement of large water volume and precise measurement of small water volume, especially for the trade of water companies. The settlement summary table and DMA zone measurement and assessment shall be used.

Major invention patents


·Residual excitation

When the product is working, only intermittent power supply is needed to ensure the continuous generation of magnetic field, and the power consumption is only one tenth of that of similar electromagnetic water meters. The breakthrough in excitation technology has resulted in the excellent metering performance of the product and the long-term reliable use of the battery. The excitation interval of the SU electromagnetic water meter reaches 0.3 seconds per time, which is 1/50 of that of traditional electromagnetic water meters, while the battery life can still be guaranteed for more than 10 years.

1-201120104340945


·Fully automatic message calibration

Before leaving the factory, the product is calibrated using a unique 8-bit message output method, with each meter calibrated for more than 8 hours. All flow parameters are automatically calibrated using software to ensure flow, repeatability, and consistency.


Excellent Performence


·Accurate measurement

·It can simultaneously monitor both ultra large and ultra small traffic. The conventional product R400 and customized product can reach R800, with an accuracy level of up to level 1.

·There is no calibration mode, and the measurement interval during actual use is consistent with that during calibration, both of which are 0.3 seconds per time.

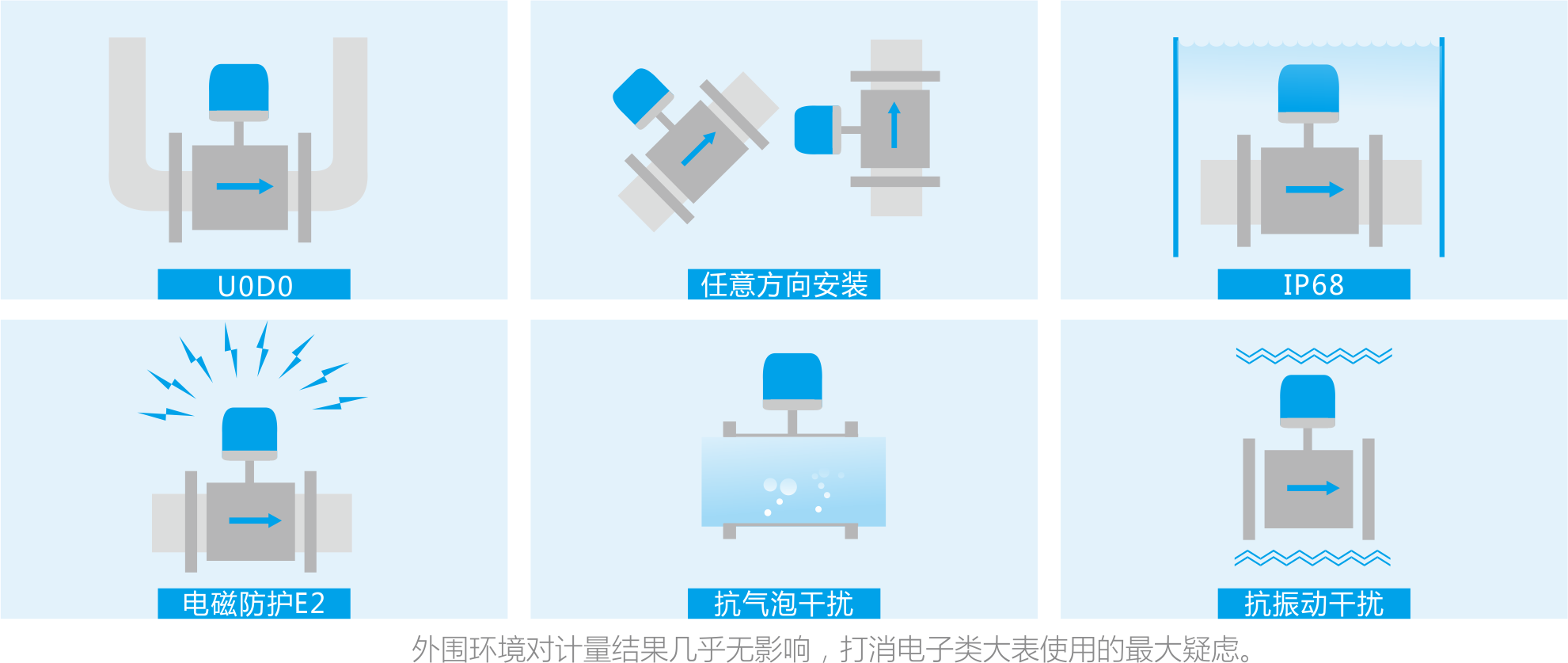

·The external environment has almost no impact on traffic, dispelling the biggest doubts about the use of electronic large meters.



1-200H31210562P

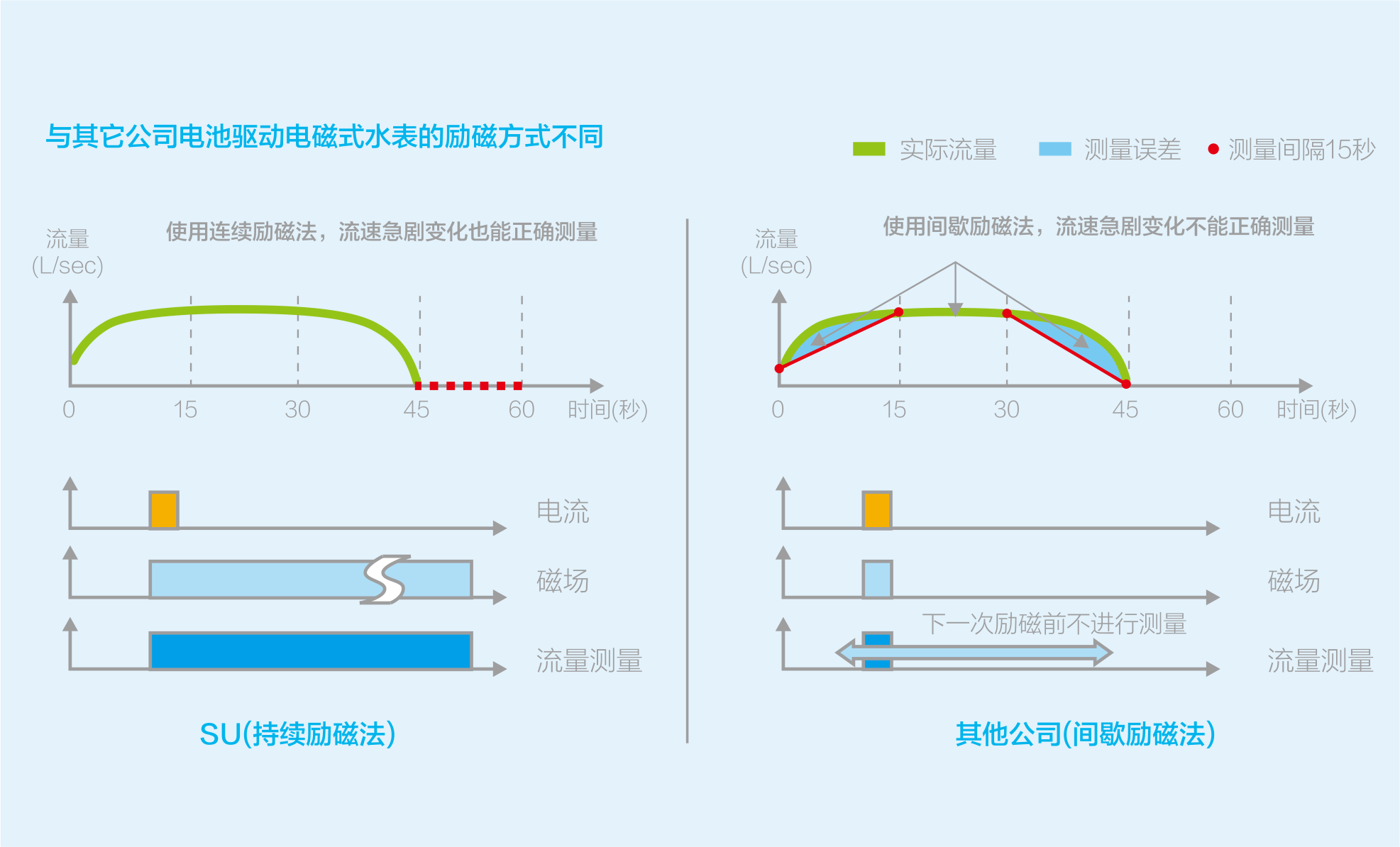

Comparison of excitation methods with other battery driven electromagnetic water meters


1-200H312243G05


·Check for leaks&Reduce energy consumption

The unique instantaneous flow active high-frequency output method (transmitted every 1.8 seconds) has brought massive and effective analysis data to water management.

·Accurate leak detection with minimum instantaneous flow rate

When measuring and detecting pipeline leakage in DMA zones, the product can accurately capture the minimum instantaneous flow rate at night, effectively determining whether there is pipeline leakage and the exact amount of leakage. This method has high leak detection accuracy, low implementation cost, and strong environmental adaptability, subverting traditional leak detection methods. Other similar products are limited by power consumption and generally upload data every 15 to 30 minutes. The minimum flow rate can only be based on the average flow rate or the current instantaneous flow rate between collection intervals. It is easy to make plausible judgments about the actual leakage situation of the pipeline network.

·Maximum instantaneous flow helps reduce costs and increase efficiency

In secondary water supply, there is a range of operating conditions where the pump achieves the highest efficiency with the lowest energy consumption, and a scientific and reasonable pump model needs to be selected based on the water supply volume of the area. The product can capture the maximum instantaneous flow rate, providing crucial guidance for analyzing the relationship between pump flow rate and head, as well as pump power. It helps water companies significantly reduce pump energy consumption costs, improve pump operation efficiency, and help achieve the dual carbon goal.


166674865095f41f

Minimum and maximum instantaneous flow on the platform



·Long Life

·Without any rotating parts, the lifetime measurement accuracy is unchanged, and the measurement error is eliminated. Low noise amplification signal is used to optimize the magnetic flux, which will not delay the velocity signal caused by the deposit, and effectively solve the measurement error caused by electrode junction.

·The battery life is more than 10 years, and the warranty of the whole machine is 8 years (from the date of factory delivery).

·A strong epoxy powder coating (Teflon rubber is used for most similar products) is attached to the measuring pipe wall, which can better ensure that the flow field will not be impacted by impurities in the water and lead to deformation, and ensure the long-term accuracy of measurement.

·The case is made of 316 food grade stainless steel and the body is of high sealing structure (IP68), which can prevent electronic components from being exposed to humid environment and ensure long-term and stable accurate measurement performance.

166788295413b868

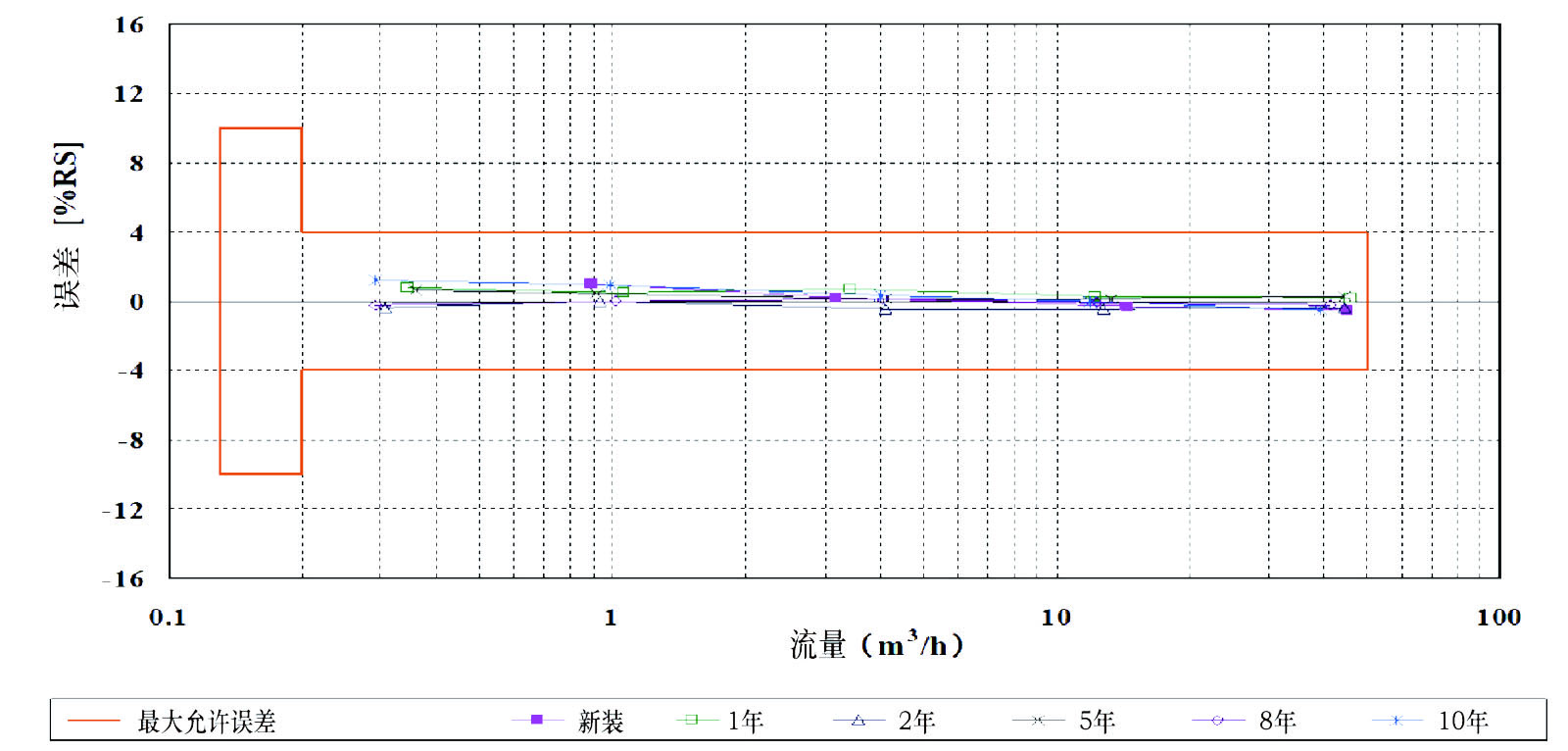

Up to 10 years of use, the measurement error curve is almost identical to when newly installed



Technical parameters
DN40
5080100150200250300
Range ratio Q3/Q1R400
R400R400R400R400R400R400R400
Overload flow m3/h31.25
50
125
200
500
787.51250
1250
Common flow m3/h25
40100
160
400
63010001000
Boundary flow m3/h0.1
0.16
0.40.63
1.62.544
Minimum flow m3/h0.0630.1
0.25
0.4
11.62.52.5
Temperature level
T30
Pressure rating1.6MPa
Degree of protectionIP68
Pressure loss level△p63

Installation parameters
DN40(threaded)5080100150200250300
Size L mm245200200250300350450500
L(with pressure) mm
245280370370500500800850
H mm
208238.5340355415.5438492.5517.5
Flanged
outer diameter D mm165200220285340395445
aperture pc-mmG2B4-φ198-φ198-φ198-φ238-φ2312-φ2312-φ23
Weightkg2.68.410.413.724.632.74768


Product diagram
